Obturation

Endodontic obturation is the final and critical step in root canal therapy. Once the root canal system has been thoroughly cleaned, shaped, and disinfected, obturation serves to seal the canals in three dimensions, preventing reinfection and promoting long-term clinical success.

Why endodontic obturation matters ?

The main objectives of obturation are:

• Prevent recontamination from oral fluids or periapical tissues
• Seal the root canal space to entomb any residual microorganisms
• Promote healing by creating a barrier against irritants
• Support the coronal restoration by providing a stable, sealed foundation

A successful obturation, combined with proper disinfection and coronal sealing, significantly improves the prognosis of root canal treatment.

When to obturate

Obturation should only be performed under ideal conditions:

• The canal is dry and free of exudate
• Root canal shaping and irrigation have been properly completed

Depending on the diagnosis and complexity, obturation can be performed in the same visit (typically in vital cases) or after interim dressing in multiple visits (usually in necrotic or infected cases).

Materials used in obturation

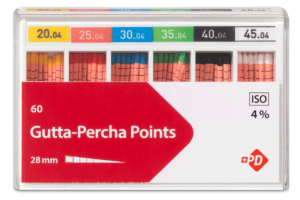

Core Material: Gutta-Percha

• Thermoplastic, biocompatible, and radiopaque
• Available in various tapers to match modern instrumentation systems
• Easily removed for retreatment or post space preparation

Root Canal Sealers

Sealers fill the gaps between gutta-percha and the canal walls. Common types include:

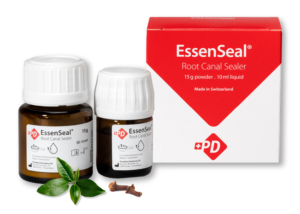

• Zinc oxide-eugenol-based: Well-established bacteriostatic such as EssenSeal
• Resin-based: Strong seal and long-term stability
• Bioceramic sealers: Excellent biocompatibility, osteogenic, chemical bonding to dentin, and minimal shrinkage
• Calcium hydroxide-based: Antibacterial

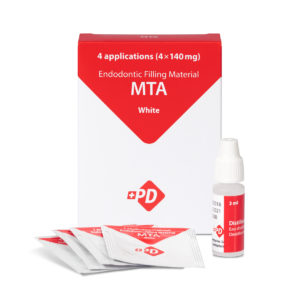

Mineral Trioxide Aggregate (MTA)

• Bioactive material often used in apical plugs, perforation repairs, or obturation in open apex or immature teeth
• Excellent sealing ability and promotes healing
• Particularly indicated when conventional obturation is not feasible due to anatomical complexities or immature root development

Obturation techniques

1. Cold Lateral Condensation

• A master cone is inserted, then compacted with accessory cones using a spreader
• Pros: Easy to learn and control
• Cons: Limited adaptability to irregular canal anatomies

2. Warm Vertical Compaction

• Heated gutta-percha is packed down apically then compacted back coronally.
• Pros: Excellent adaptation to canal irregularities
• Cons: Technique-sensitive and requires specialized equipment

3. Carrier-Based Systems

• Gutta-percha is pre-coated on a central carrier.
• Pros: Efficient, especially in curved canals.
• Cons: Sensitive to the rheological properties of the root canal walls.

4. Single Cone with Bioceramic Sealer

• Uses a single, matched-taper gutta-percha cone with a bioceramic sealer
• Pros: Simple technique, excellent sealing ability
• Cons: Highly dependent on the sealer’s properties

Critical aspects of apical and coronal seal

• Apical seal: Should terminate 0.5–1.0 mm from the anatomic foramen. Overextension may cause tissue irritation; underfilling can leave space for bacterial growth.
• Coronal seal: Often underestimated, the coronal restoration must prevent microleakage to protect the sealed canal. A delay in permanent restoration increases the risk of failure.

Role of irrigation in successful obturation

A proper final irrigation protocol is essential before obturation. Residual EDTA, if not adequately flushed with saline or sterile water, can interfere with bioceramic-based sealers. A final rinse with CHX helps create an ideal surface for obturation.

Evaluation and follow-up

• A post-operative radiograph should show a dense, homogenous fill extending to the correct working length
• Follow-up assessments should monitor for symptoms and periapical healing
• Long-term success depends not only on the quality of obturation, but also on the integrity of the coronal restoration and periodontal support

Endodontic obturation is more than just filling the canal — it’s about sealing a complex anatomy to prevent reinfection and ensure biological healing. With advancements in sealer technology, matched taper systems, and thermoplastic techniques, clinicians can now achieve more predictable, long-lasting outcomes. Choosing the right materials and technique for each case is essential for clinical success.
